Linear Voice Coil Motor Actuator LVCM-013-044-03, Continuous Force: 6.9 Oz (1.9 N), Stroke: 0.60 in (15.2 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
|
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-044-03 | 0.60 | inch | 6.9 | oz | 21.7 | oz | 1.750 | inch |
Datasheet in PDF  |
15.2 | mm | 1.9 | N | 6.0 | N | 44.5 | mm |
Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-044-03M | 0.60 | inch | 6.9 | oz | 21.7 | oz | 1.750 | inch |
|
Datasheet in PDF |
15.2 | mm | 1.9 | N | 6.0 | N | 44.5 | mm |

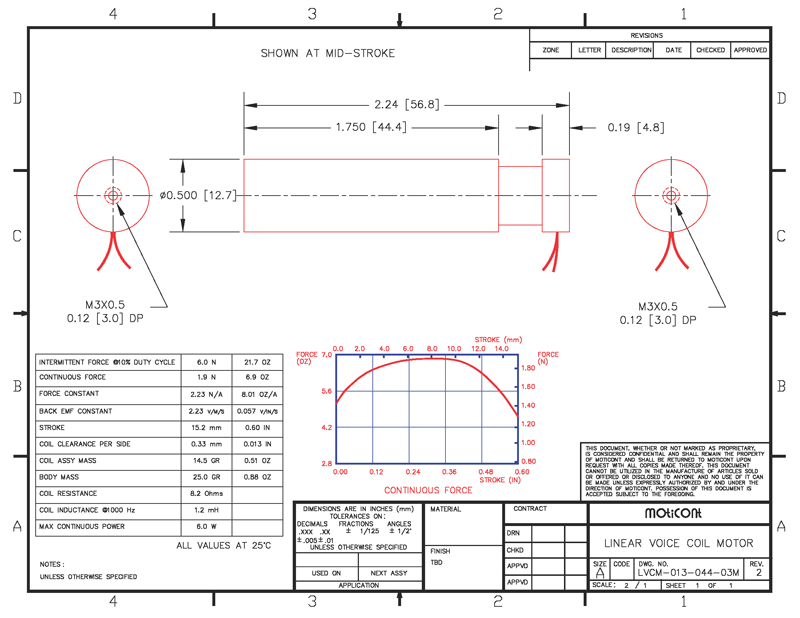

Drawing quick view
 |
Download 3D STEP |
|||||||
|
| ||||||||
