Linear Voice Coil Motor Actuator LVCM-013-013-03M, Continuous Force: 5.1 Oz (1.42 N), Stroke: 0.125 in (3.2 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-013-03M | 0.125 | inch | 5.1 | oz | 16.1 | oz | 0.500 | inch |
Datasheet in PDF  |
3.2 | mm | 1.42 | N | 4.48 | N | 12.7 | mm |

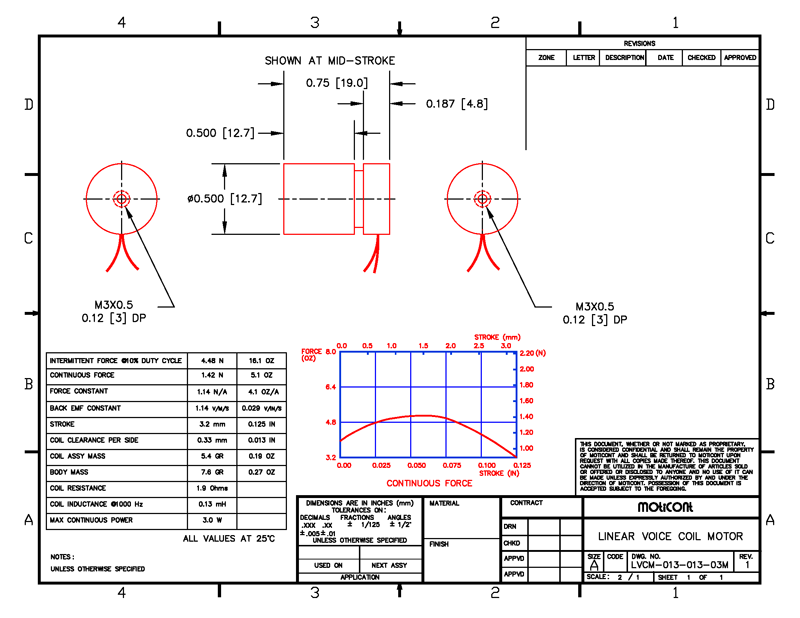

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
