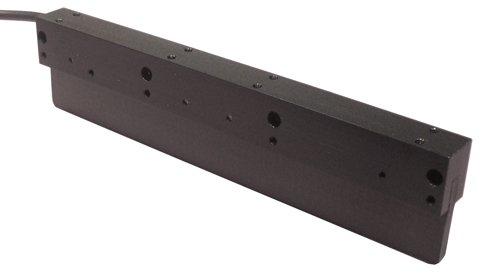

Linear Brushless Ironless Motors, LBIM-021-03
 |
 |
|
|
||||||||||||||||||||||
Drawing in PDF
|
|||||||||||||||||||||||
| Datasheet in PDF
|
Drawing quick view
|
||||||||||||||||||||||
| ||||
|
Intermittent Force @ 10% Duty Cycle |
31.6 |
lb |
||
|
140.6 |
N |
|||
|
Continuous Force @ 25 °C |
10.0 |
lb |
||
|
44.5 |
N |
|||
|
Continuous Force @ Tmax |
5.5 |
lb |
||
|
24.3 |
N |
|||
|
Continuous Power |
49 |
W |
||
|
Motor Constant |
1.0 |
lb/W^0.5 |
||
|
4.6 |
N/ W^0.5 |
|||
|
Coil Assembly Length |
3.2 |
in |
||
|
81.3 |
mm |
|||
| ELECTRICAL SPECIFICATIONS | ||
|
Peak Current @ 10% Duty Cycle |
16.1 |
A |
|
Continuous Current @ Tmax |
3.8 |
A |
|
Force Constant |
1.4 |
lb/A |
|
6.4 |
N/A |
|
|
Back EMF |
0.16 |
V/in/s |
|
6.4 |
V/m/s |
|
|
Resistance @ 25 °C |
2.9 | Ohm |
| Inductance @ 1 KHz | 0.93 | mH |
| Part No. | Description |
| LBF-021-029-249-01 |
Forcer, Continuous: Force 7.3
lb (32.6 N),
Intermittent
Force @ 10% Duty Cycle: 23.1 lb (102.9 N)
|
 |
|
|
One or a combination of the following magnetic tracks is required. |
|
| Part No. | Description |
| LBM-021-038-121-01 |
Magnetic Track, Length: 4.75 in (121 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1 mm)
|
 |
|
| LBM-021-038-243-01 |
Magnetic
Track, Length: 9.55 in (243 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in (38.1
mm)
|
|
|
|
| LBM-021-038-365-01 |
Magnetic
Track, Length: 14.35 in (365 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in
(38.1 mm)
|
|
|
|
| LBM-021-038-608-01 |
Magnetic
Track, Length: 23.95 in (608 mm), Width: 0.82 in, (20.8 mm), Height:1.50 in
(38.1 mm)
|
|
|
