Linear Voice Coil Motor Actuator LVCM-032-076-02, Continuous Force: 1.8 lb (8.0 N), Stroke: 2.50 in (63.5 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 1.250 inch, 31.8 mm
Linear Voice Coil Motor

The LVCM-032-076-02 Linear Voice Coil Motor has a stroke length of 2.5 in. (63.5 mm) with a high force-to-size ratio of 1.8 lb (8.0 N) and a peak force of 5.7 lbs. (25.3 N) at 10% duty cycle.



This clean, quiet, efficient, low inertia, high acceleration, brushless, high speed linear DC motor has zero cogging and features high accuracy, and high repeatability when operated in a closed loop as a DC servo motor.

The compact 1.250 in. (31.8 mm) diameter LVCM-032-076-02 Linear Voice Coil Motor which is also called a moving coil motor is ideal for:  Medical devices, scanners and laser beam steering and filtering, work holding and clamping, assembly, testing, laser machining and drilling, wafer handling, optical focusing, and dynamic vibration absorption.
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-032-076-02 2.50 inch 1.8 lb 5.7 lb 3.0 inch
Datasheet in PDF 63.5 mm 8.0 N 25.3 N 76.2 mm

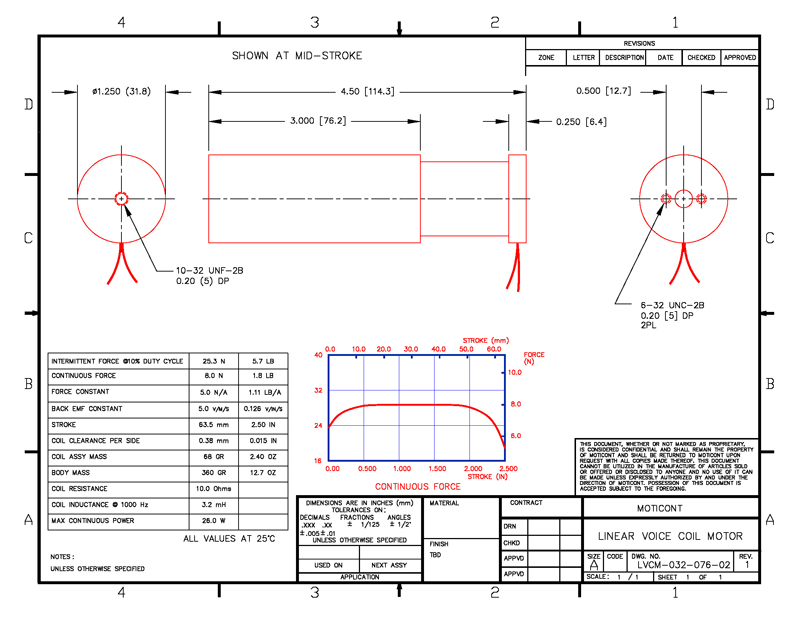

Drawing quick view Mechanical Drawing Download 3D STEP
