The HVCM-016-013-003-01 Hollow Core Voice Coil
Motor, features an open aperture and high
force-to-size ratio. This miniature Linear DC Servo
Motor has a continuous force rating of 5.7 oz. (1.6
N) and a peak force of 17.9 oz (5.0 N) at a 10% duty
cycle. Clean and quiet, this non-commutated,
miniature brushless servo motor features: Zero
cogging and zero backlash when connected directly to
a load, high acceleration, deceleration and high
speed.

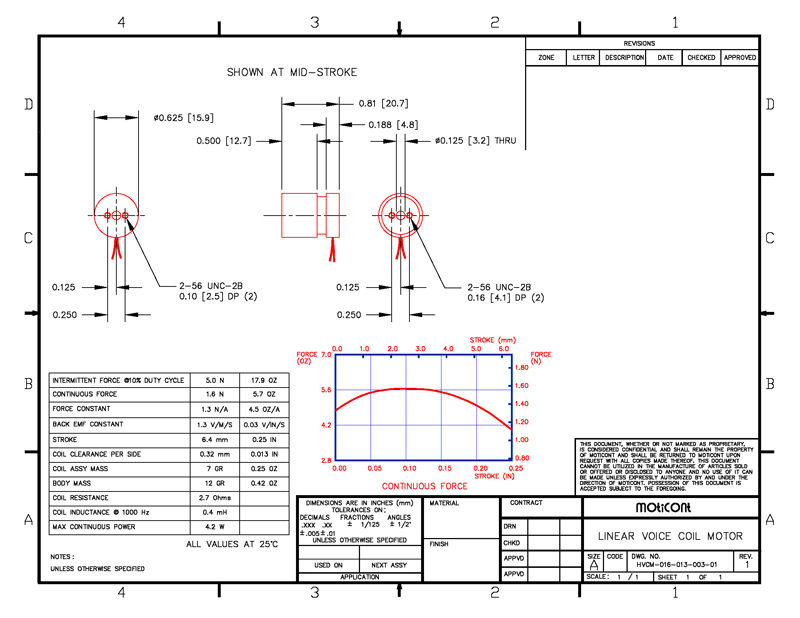

The HVCM-016-013-003-01 Hollow Core
Voice Coil Linear Servo Motor has a 0.125 in. (3.2
mm) diameter open aperture for optics, illumination,
laser beams, or cable passage. The extended length
of the motor is 0.81 in. (20.7 mm) at mid-stroke.
Ideal for applications such as: Haptic feedback,
medical diagnostic equipment, testing, optical
focusing, positioning, laser beam steering, wafer
handling, dynamic vibration absorption, laser
drilling, cutting, welding, and machining
applications.
Two threaded mounting holes on
0.250 in. (6.4 mm) centers in the housing and coil
ends allow for flexible and easy integration into
new and existing applications. When used in closed
loop applications with an adequate position sensor,
resolutions of less then 1 micron are achievable.
|
