Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-095-089-0106VAC Continuous Force: 25.0 lb (111.2 N), Stroke: 2.50 in (63.5 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||||
|
|
||||||||||
|
The GVCM-095-089-0106VAC features 3.5 in. (88.9 mm) long
by 3.750 in. (95.3 mm) dia., 2.50 inch (63.5 mm)
stroke and a continuous force of 25.0 lbs (111.2 N)
and 79.0 lbs (351.3 N) of peak force at a 10% duty
cycle. The motor is guided by a long-life plain bearing that permits side loads up to 3 lb (13.5 N). The precision ground 0.236 inch (6.0 mm) diameter shaft has an internal thread. These new voice coil actuators feature: High speed, high acceleration/deceleration, zero backlash, high force to size ratio and high accuracy, and high repeatability when used in a closed loop servo system. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| GVCM-095-089-01S06VAC | 2.50 | inch | 25.0 | lb | 79.0 | lb | 3.50 | inch | ||
Datasheet in PDF  |
63.5 | mm | 111.2 | N | 351.3 | N | 88.9 | mm | ||

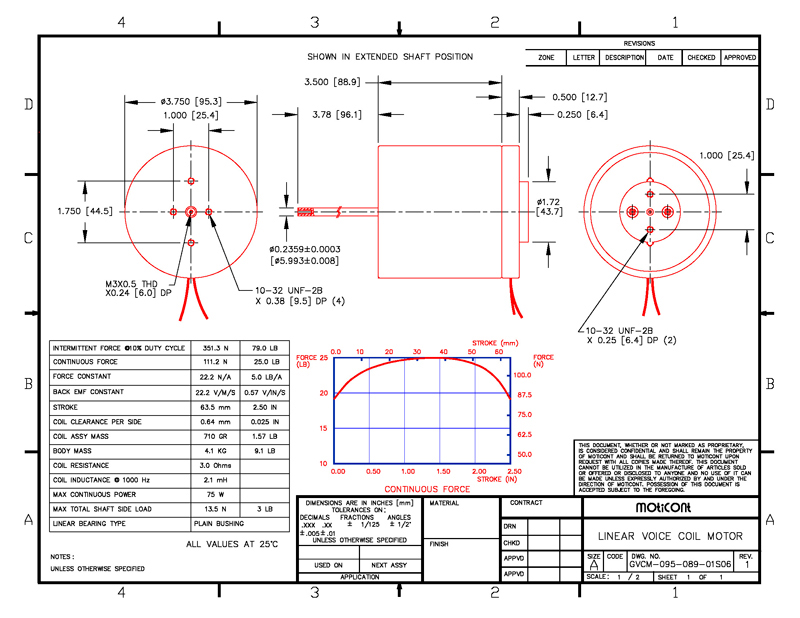

Drawing quick view
 |
Download 3D STEP | |||||||||
