Linear Motor with Internal Shaft & Bearing, GVCM-051-127-01
Continuous Force: 5.0 lb (22.2 N), Stroke: 3.75 in (95.3 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

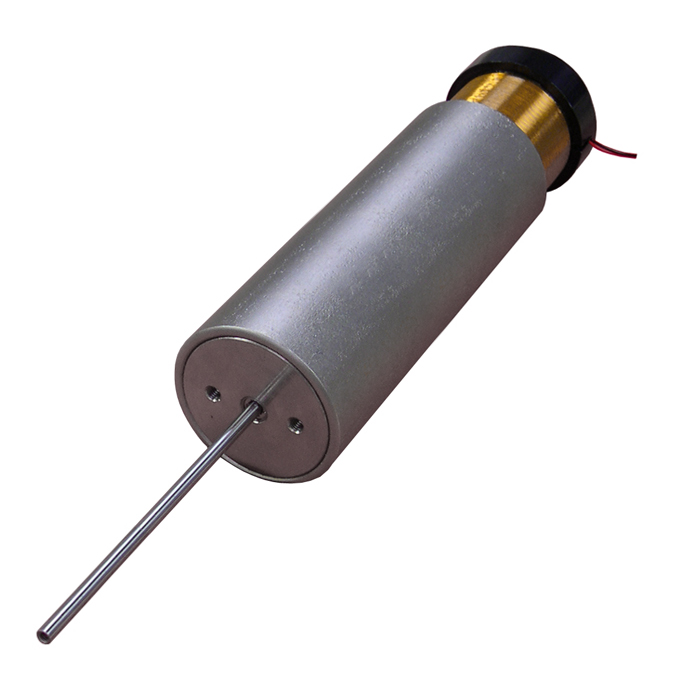

Linear Voice Coil Motor with Internal Bearing

The GVCM-051-127-01 Linear Voice Coil Motor is a  linear DC Motor with Internal Shaft and Bearing.



The 3.75 in. (95.3 mm) stroke of the precision ground 0.236 (6.0 mm) diameter shaft with an internal thread, is guided by a long-life plain bearing that can allow side loads up to 1 lb (4.4 N).

The housing and coil ends of the motor have threaded mounting holes in the housing and coil ends for easy integration into existing and future applications.

This brushless voice coil actuator features: High speed, high acceleration/deceleration, zero backlash, high accuracy, high repeatability, and a high force to size ratio of 5.0 lb (22.2 N) continuous force and 15.8 lb (70.3N) of peak force in either direction, in a housing measuring just 2.00 in. (50.8 mm) dia. by 5.00 in. (127.0 mm) length.



Clean, quiet, efficient, with low inertia the GVCM-051-127-01 Linear Voice Coil Motor is ideal for: Assembly and sorting equipment, work holding and clamping, medical devices, wafer handling, optical focusing, antenna positioning, testing, slide actuators, shutters, doors and valve actuation.

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-127-01S06 3.75 inch 5.0 lb 15.8 lb 5.00 inch
Datasheet in PDF 95.3 mm 22.2 N 70.3 N 127.0 mm

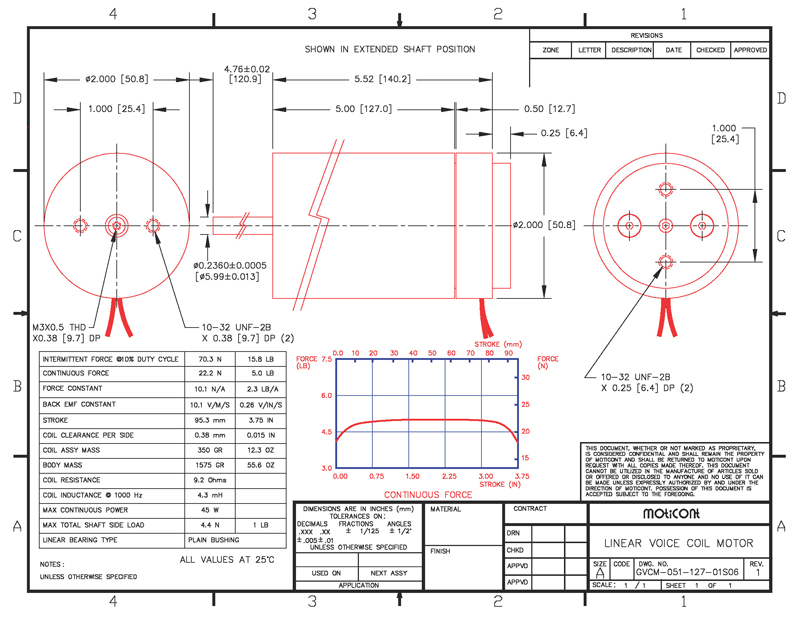

Drawing quick view Mechanical Drawing Download 3D STEP
